Feature: Pure hardware structure, no internal operating system, no system crash, virus infestation, compatibility and other problems, allowing frequent switch on and off, quick starting up (no more than 5s).Output support DVI, HDMI, 3G-SDI, VGA and other signals;Meet kinds of signal format input, support DVI/HDMI/VGA/SDI/AV signals, and support 4K signal;Support signal source group, it can control multiple video wall groups with different resolution. It is with function of windowing, overlay, stretching, scaling, PIP and roaming. Support local monitoring. In the control room, it can real-time monitor video wall screen through local monitor; The input card and output card support hot plug and plug, and allow the system to replace and upgrade the card in the case of continuous power.Support signal preview. Input images can be pre-paged on the interface software, and checked in the preview area in real time and make sure it is normal before opening the window accordingly; 8ch signals can be previewed simultaneously;Support software redisplay. Video wall effect can be viewed on software interface, instead of the traditional virtual window;Support video wall grouping mode, max support 4 groups split screens. .Each group of screens can independently set parameters such as resolution,row and column, and support independent storage and invocation of scenes.Support sync technology, screen sync switches seamlessly. .Support video signals fold lines, to make picture bright and smooth.Supports storage for scenarios. Network port and serial port rs-232 communication control, and control protocol is opened; Redundant power supply design, which is safe and reliable. 2 power supply can work simultaneously or separately. One power failure will not affect the normal use of another power supply.

Brief Introduction:HDMI matrix switcher can switch multiple HDMI signals from input channels to any output channel, and output channels are independent from each other. Or switching single or multiple video input signals to corresponding output channels, 1 ch input can correspond to multiple outputs. Modular card design, which is convenient for different requirement. HDMI matrix switcher is mainly used in broadcast/TV projects, multimedia meeting room, video wall display, control room, etc.  Feature:Supports a variety of resolutions: 480P,576I,720P,1080P, 1080i, etc.Adopts modular design, with each module 2 or 4, choosing different cases according to user requirements;With the function of cross-switching between input signal and output signal;with program switching, synchronous switching, group switching, timing switching, panoramic switching, scene switching and other switching modes.Supports multiple control modes such as panel buttons, wireless remote control, RS485, RS232 and Ethernet.Through RS485, TCP/IP, it can work with security control platform, alarm host, CCTV camera, etc.With power loss memory function, power failure site protection function, video loss alarm, ESD electrostatic protection;Adopts metal standard industrial cabinet, which can be installed in cabinet and bench.

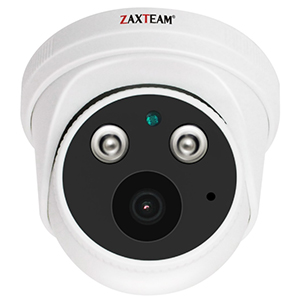

Brief Introduction: Plastic dome shell; Adopt 1/2.9” CMOS sensor and high performance network video processing chipset, max resolution reach 2304*1296 real-time preview and record; 3mp HD fix lens for clear image. Support mobile view, P2P visit, H.265 encoding, DC12 or POE optional. Feature:Use high performance 5MP 1/2.9”CMOS sensor;5MP HD lens,  8mm, 12mm lens optional;Mini-illumination:  color 0.0001Lux@F1.2(color); B/W 0Lux@F1.2 (IR on)；Support SmartIR anti IR overexposure technology; 2pcs array leds, IR distance 30~40m; ICR support auto switch, manual switch, timing switch, to achieve real day and night monitoring;Support H.265, H.264 encoding;Main stream support 2592*1944（5MP）, 2560*1440（4MP）, 2304*1296（3MP）, 1920*1080 (1080P) resolution;Subsream support 720*576(D1), 640*480(VGA), 640*360 (Q720P) and other resolution;upport bit rate 128Kbps~8Mpbs continuously adjustable,Support frame rate 10-25 fps adjutable; Support TCP/IP, UDP, RTSP, HTTP, HPPTS, DHCP, NTP, ONVIF, UPNP;Support ONVIF, SLINK(private), GB28181 protocol, no need development and seamlessly access to international third-party open platform. Support IE visit, built-in web server, support multiple users online visit, monitor, update configuration simultaneously. Support motion detection, mask alarm and privacy mask;  0.5T hashrate, support face capture and comparison under complex environment; Support 10000 face database; Support face database batch import, capture record and recognition; Support face tracking, and exposure mode; Support face recognition area choice, professional capture rate; Support face picture uploading;  Support 3D noise reduction; Support DWDR, BLC, auto E-shutter, auto iris, defog, etc;  Support TF card storage; Support ANR breakpoint resume function; Alarm in/out optional; Support the initial device startup to modify the password to ensure the password security;SDK can be offered,  to realise kinds of application and development；Real time monitor, intercom function(optional);IP67 DC12V power supply, POE optional.

Brief Introduction: Plastic dome shell; Adopt 1/2.9” CMOS sensor and high performance network video processing chipset, max resolution reach 2304*1296 real-time preview and record; 3mp HD fix lens for clear image. Support mobile view, P2P visit, H.265 encoding, DC12 or POE optional. Feature:Use high performance 5MP 1/2.9”CMOS sensor;5MP HD lens,  8mm, 12mm lens optional;Mini-illumination:  color 0.0001Lux@F1.2(color); B/W 0Lux@F1.2 (IR on)；Support SmartIR anti IR overexposure technology; 2pcs array leds, IR distance 30~40m; ICR support auto switch, manual switch, timing switch, to achieve real day and night monitoring;Support H.265, H.264 encoding;Main stream support 2592*1944（5MP）, 2560*1440（4MP）, 2304*1296（3MP）, 1920*1080 (1080P) resolution;Subsream support 720*576(D1), 640*480(VGA), 640*360 (Q720P) and other resolution;Support bit rate 128Kbps~8Mpbs continuously adjustable,Support frame rate 10-25 fps adjutable; Support TCP/IP, UDP, RTSP, HTTP, HPPTS, DHCP, NTP, ONVIF, UPNP;Support ONVIF, SLINK(private), GB28181 protocol, no need development and seamlessly access to international third-party open platform. Support IE visit, built-in web server, support multiple users online visit, monitor, update configuration simultaneously. Support motion detection, mask alarm and privacy mask;  0.5T hashrate, support face capture and comparison under complex environment; Support 10000 face database; Support face database batch import, capture record and recognition; Support face tracking, and exposure mode; Support face recognition area choice, professional capture rate; Support face picture uploading;  Support 3D noise reduction; Support DWDR, BLC, auto E-shutter, auto iris, defog, etc;  Support TF card storage; Support ANR breakpoint resume function; Alarm in/out optional; Support the initial device startup to modify the password to ensure the password security;SDK can be offered,  to realise kinds of application and development；Real time monitor, intercom function(optional);IP67 DC12V power supply, POE optional.

Brief Introduction: Plastic dome shell; Adopt 1/2.9” CMOS sensor and high performance network video processing chipset, max resolution reach 2304*1296 real-time preview and record; 3mp HD fix lens for clear image. Support mobile view, P2P visit, H.265 encoding, DC12 or POE optional. Feature:Use high performance 2MP 1/2.9”CMOS sensor;3MP HD lens,  8mm, 12mm lens optional;Mini-illumination:  color 0.0001Lux@F1.2(color); B/W 0Lux@F1.2 (IR on)；Support SmartIR anti IR overexposure technology; 2pcs array leds, IR distance 30~40m; ICR support auto switch, manual switch, timing switch, to achieve real day and night monitoring;Support H.265, H.264 encoding;Main stream support 1920*1080 (1080P) resolution;Subsream support 720*576(D1), 640*480(VGA), 640*360 (Q720P) and other resolution;Support bit rate 128Kbps~4Mpbs continuously adjustable,Support frame rate 10-25 fps adjutable; Support TCP/IP, UDP, RTSP, HTTP, HPPTS, DHCP, NTP, ONVIF, UPNP;Support ONVIF, SLINK(private), GB28181 protocol, no need development and seamlessly access to international third-party open platform. Support IE visit, built-in web server, support multiple users online visit, monitor, update configuration simultaneously. Support motion detection, mask alarm and privacy mask;  0.5T hashrate, support face capture and comparison under complex environment; Support 10000 face database; Support face database batch import, capture record and recognition; upport face tracking, and exposure mode; Support face recognition area choice, professional capture rate; Support face picture uploading;  Support 3D noise reduction; Support DWDR, BLC, auto E-shutter, auto iris, defog, etc;  Support TF card storage; Support ANR breakpoint resume function; Alarm in/out optional; Support the initial device startup to modify the password to ensure the password security;SDK can be offered,  to realise kinds of application and development；Real time monitor, intercom function(optional);IP67 DC12V power supply, POE optional.

Brief Introduction: Plastic dome shell; Adopt 1/2.9” CMOS sensor and high performance network video processing chipset, max resolution reach 2304*1296 real-time preview and record; 3mp HD fix lens for clear image. Support mobile view, P2P visit, H.265 encoding, DC12 or POE optional. Feature:Use high performance 2MP 1/2.9”CMOS sensor;3MP HD lens,  8mm, 12mm lens optional;Mini-illumination:  color 0.0001Lux@F1.2(color); B/W 0Lux@F1.2 (IR on)；Support SmartIR anti IR overexposure technology; 2pcs array leds, IR distance 30~40m; ICR support auto switch, manual switch, timing switch, to achieve real day and night monitoring;Support H.265, H.264 encoding;Main stream support 1920*1080 (1080P) resolution;Subsream support 720*576(D1), 640*480(VGA), 640*360 (Q720P) and other resolution;Support bit rate 128Kbps~4Mpbs continuously adjustable,Support frame rate 10-25 fps adjutable; Support TCP/IP, UDP, RTSP, HTTP, HPPTS, DHCP, NTP, ONVIF, UPNP;Support ONVIF, SLINK(private), GB28181 protocol, no need development and seamlessly access to international third-party open platform. Support IE visit, built-in web server, support multiple users online visit, monitor, update configuration simultaneously. Support motion detection, mask alarm and privacy mask;  0.5T hashrate, support face capture and comparison under complex environment; Support 10000 face database; Support face database batch import, capture record and recognition; Support face tracking, and exposure mode; Support face recognition area choice, professional capture rate; Support face picture uploading;  Support 3D noise reduction; Support DWDR, BLC, auto E-shutter, auto iris, defog, etc;  Support TF card storage; Support ANR breakpoint resume function; Alarm in/out optional; Support the initial device startup to modify the password to ensure the password security;SDK can be offered,  to realise kinds of application and development；Real time monitor, intercom function(optional);IP67 DC12V power supply, POE optional.

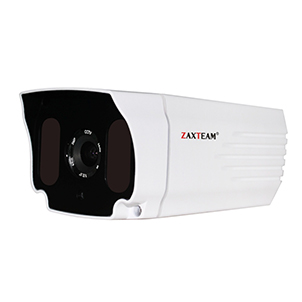

Brief Introduction: Waterproof metal shell; Adopt 1/3” CMOS sensor and high performance network video processing chipset, max resolution reach 2592*1944 real-time preview and record; 5mp HD fix lens for clear image. SmartIR technology, Super night vision, Support mobile view, P2P visit, H.265 encoding, DC12 or POE optional. Feature:Use high performance 5MP 1/3”CMOS sensor;8mm, 12mm motorized lens; Mini-illumination:  color 0.0001Lux@F1.2(color); B/W 0Lux@F1.2 (IR on)；Support SmartIR anti IR overexposure technology; 2pcs array leds, IR distance 40~60m; ICR support auto switch, manual switch, timing switch, to achieve real day and night monitoring;Support H.265, H.264 encoding;Main stream support 2592*1944（5MP）, 2560*1440（4MP）, 2304*1296（3MP）, 1920*1080 (1080P) resolution;Sub stream support 720*576(D1), 640*480(VGA), 640*360 (Q720P) and other resolution;Support bit rate 128Kbps~8Mpbs continuously adjustable,Support frame rate 10-25 fps adjustable; Support TCP/IP, UDP, RTSP, HTTP, HPPTS, DHCP, NTP, ONVIF, UPNP;Support ONVIF, SLINK(private), GB28181 protocol, no need development and seamlessly access to international third-party open platform. Support IE visit, built-in web server, support multiple users online visit, monitor, update configuration simultaneously. Support motion detection, mask alarm and privacy mask;  Support face capture and comparison under complex environment; Support face tracking, and exposure mode; Support face recognition area choice, professional capture rate; Support face picture uploading;  Support 3D noise reduction; Support DWDR, BLC, auto E-shutter, auto iris, defog, etc;  Support the initial device start-up to modify the password to ensure the password security;SDK can be offered,  to realize kinds of application and development；Real time monitor, intercom function(optional);IP67 DC12V power supply, POE optional.

Brief Introduction: Waterproof metal shell; Adopt 1/2.9” CMOS sensor and high performance network video processing chipset, max resolution reach 2304*1296 real-time preview and record; 3mp HD fix lens for clear image. Support mobile view, P2P visit, H.265 encoding, DC12 or POE optional. Feature:Use high performance 5MP 1/2.9”CMOS sensor;5MP HD lens,  8mm, 12mm lens optional;Mini-illumination:  color 0.0001Lux@F1.2(color); B/W 0Lux@F1.2 (IR on)；Support SmartIR anti IR overexposure technology; 2pcs array leds, IR distance 40~60m; ICR support auto switch, manual switch, timing switch, to achieve real day and night monitoring;Support H.265, H.264 encoding;Main stream support 2592*1944（5MP）, 2560*1440（4MP）, 2304*1296（3MP）, 1920*1080 (1080P) resolution;Subsream support 720*576(D1), 640*480(VGA), 640*360 (Q720P) and other resolution;Support bit rate 128Kbps~8Mpbs continuously adjustable,Support frame rate 10-25 fps adjutable; Support TCP/IP, UDP, RTSP, HTTP, HPPTS, DHCP, NTP, ONVIF, UPNP;Support ONVIF, SLINK(private), GB28181 protocol, no need development and seamlessly access to international third-party open platform. Support IE visit, built-in web server, support multiple users online visit, monitor, update configuration simultaneously. Support motion detection, mask alarm and privacy mask;  0.5T hashrate, support face capture and comparison under complex environment; Support 10000 face database; Support face database batch import, capture record and recognition; Support face tracking, and exposure mode; Support face recognition area choice, professional capture rate; Support face picture uploading;  Support 3D noise reduction; Support DWDR, BLC, auto E-shutter, auto iris, defog, etc;  Support TF card storage; Support ANR breakpoint resume function; Alarm in/out optional; Support the initial device startup to modify the password to ensure the password security;SDK can be offered,  to realise kinds of application and development；Real time monitor, intercom function(optional);IP67 DC12V power supply, POE optional.

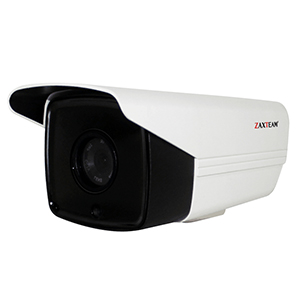

Brief Introduction: Waterproof shell; Adopt 1/3” CMOS sensor and high performance network video processing chipset, max resolution reach 2592*1944 real-time preview and record; 5mp HD fix lens for clear image. Support mobile view, P2P visit, H.265 encoding, DC12 or POE optional. Feature:Use high performance 5MP 1/3”CMOS sensor;3MP HD lens, 3.6mm, 4mm, 6mm, 8mm, 12mm, 16mm lens optional;Mini-illumination color 0.0001Lux@F1.2(color); B/W 0Lux@F1.2 (IR on)；Support SmartIR anti IR overexposure technology; 4pcs array leds, IR distance 40~60m; ICR support auto switch, manual switch, timing switch, to achieve real day and night monitoring;Support H.265, H.264 encoding;Main stream support 2592*1944(5MP), 2560*1440(4MP), 2304*1296(3MP), 1920*1080 (1080P) resolution;Subsream support 720*576(D1), 640*480(VGA), 640*360 (Q720P) and other resolution;Support bit rate 128Kbps~8Mpbs continuously adjustable,Support frame rate 10-25 fps adjutable; Support TCP/IP, UDP, RTSP, HTTP, HPPTS, DHCP, NTP, ONVIF, UPNP;Support ONVIF, SLINK(private), GB28181 protocol, no need development and seamlessly access to international third-party open platform. Support IE visit, built-in web server, support multiple users online visit, monitor, update configuration simultaneously. Support motion detection, mask alarm and privacy mask;  Embedded intelligent human shape tracking capture algorithm, support human shape detection in complex environment; Support Alarm sound/light linkage; Support 3D noise reduction; Support BLC, auto E-shutter, auto iris, defog, etc;  Support the initial device startup to modify the password to ensure the password security;SDK can be offered,  to realise kinds of application and development；Real time monitor, intercom function(optional);DC12V power supply, POE optional.
